Copy of President Lincoln II (v.3)

LINCOLN
New Low Price
enlarge
  • Description
  • More Details

Version 3 now in stock

Note: these are a 10m Amateur radio, and although they can be expanded to cover CB channels it in not legal to operate them on any CB channels.

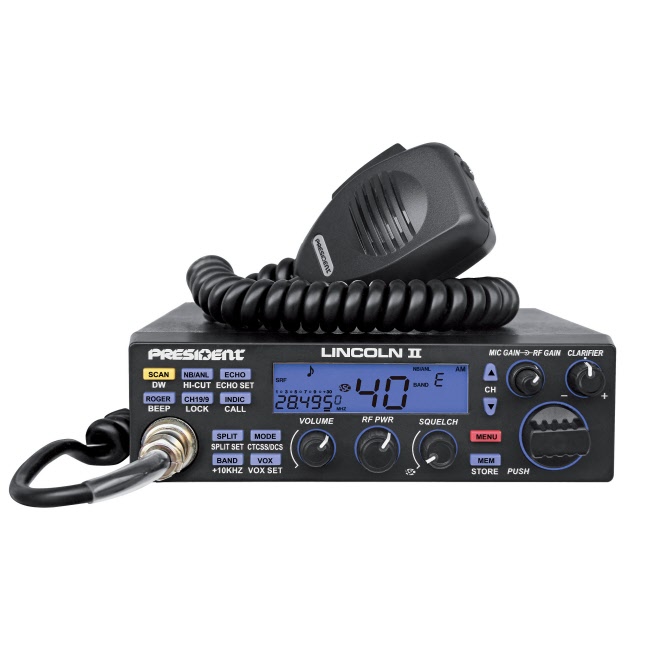

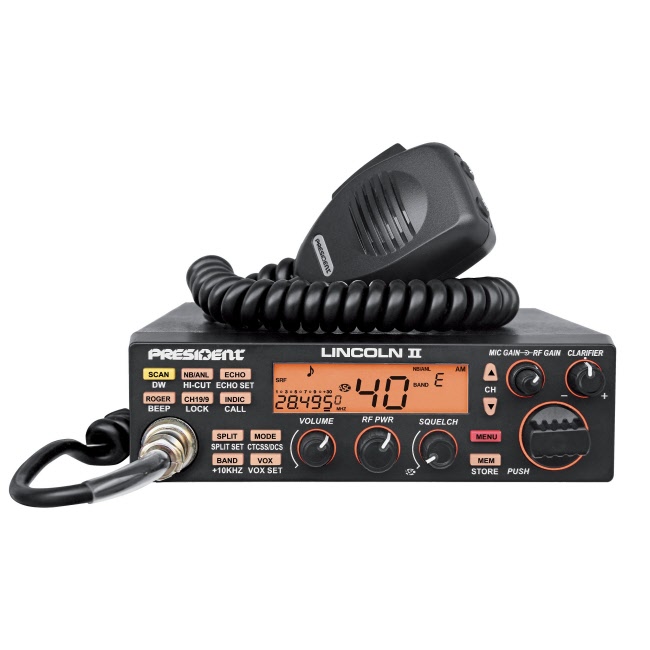

After a long wait, the new President Lincoln II is here!

The radio is all mode (AM/FM/SSB/CW) and covers the full 10m band as standard (28.000 - 29.700MHz). It can be expanded to cover 25.615 - 30.115MHz.

Advanced features include CTCSS and many options that can be programmed through the menus.

Click on the "more details" link for full specs.

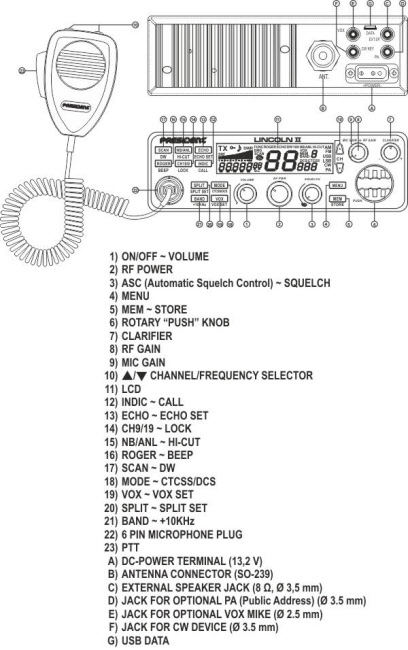

Features

- Rotary switch and Up/down channel selector
- VFO Mode
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Public Address
- Vox function (Hands free)
- ANL filter , NB and HI-CUT
- RF Gain / Mike gain
- Clarifier
- Channels and memories scan
- 6 Memories
- CTCSS (38 tones)
- DCS (104 codes)
- Dim
- MENU fonction key
- Beep Function
- Roger Beep
- Mode switch AM/FM/LSB/USB/CW
- Dual watch
- Key locking
- SWR (Power Reading /SWR)
- Preset 9/19
- TOT (Time Out Timer) adjustable
- Front microphone plug
- External loudspeaker jack
- Dimensions H x W x D (in mm) : 52 x 170 x 250

Technical characteristics

- General
Bands : 10
Modulation modes : AM/FM/LSB/USB/CW
Frequency ranges : from 28.000 MHz to 29.700 MHz
CTCSS : 38 tones
DCS : 104 codes
Antenna impedance : 50 ohms
Power supply : 13.2 V
Dimensions H x W x D (in mm) : 52 x 170 x 250
Weight : 1.4 kg
Accessories supplied : power cord with fuse
1 microphone and its hanger
1 mounting bracket with fixing screws
- Transmission
Frequency allowance : +/- 300 Hz
Carrier power : 12 W AM / 28 W FM / 31 W USB-LSB / 12 W CW
Transmission interference : inferior to - 50 dBc
Audio response : 300 Hz to 3 kHz
Emitted power in the adj. channel : inferior to 20 µW
Microphone sensitivity : 3 mV
Drain : 6 A (with modulation)
Modulated signal distortion : 1.8 %
- Reception
Maxi. sensitivity at 20 dB sinad : 0,5 μV -110 dBm (AM)
0,35 μV -116 dBm (FM)
0.28µV-118 dBm (USB/LSB/CW)
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : mini 0.2 μV - 120 dBm
maxi 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain :

400 mA nominal, 600 mA max

Independent Reviews of the Lincoln II:

A first look at the radio:



 First Transmission:

Transatlantic Contact:
